Requires $65 Core Charge.
*NOTE - Keep your red and green lenses because these tachs DO NOT come with them (69 lenses and 70 lenses are different).

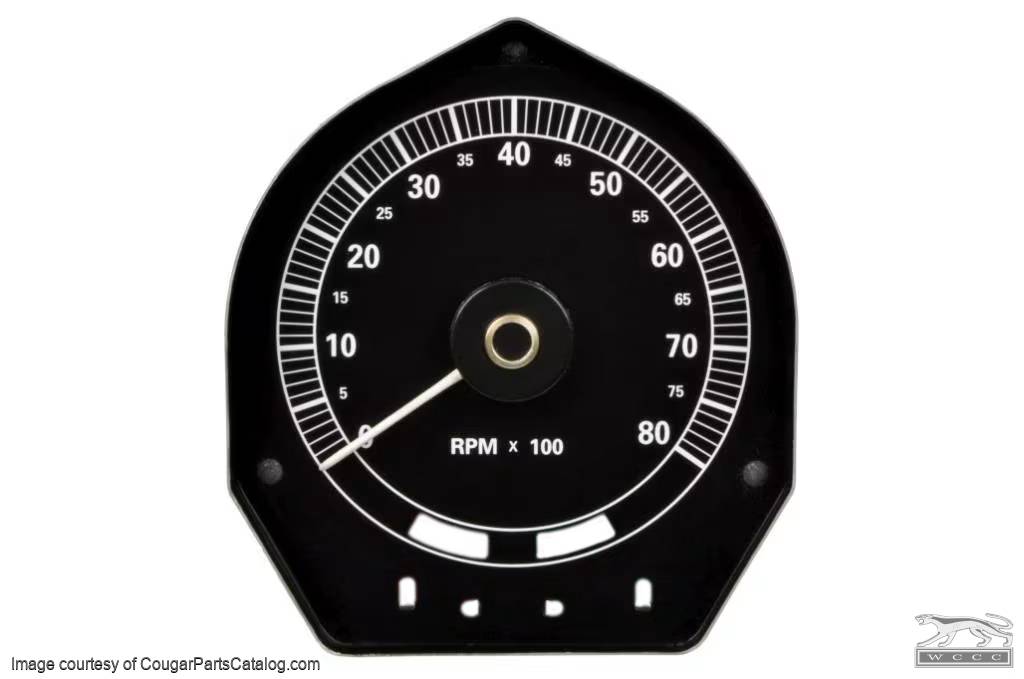

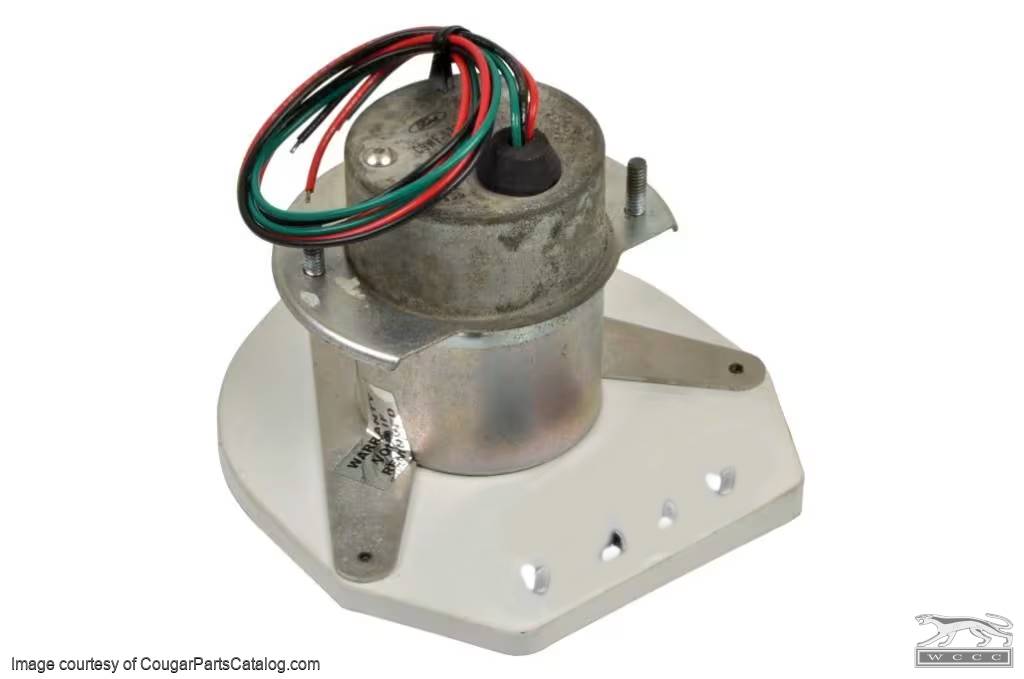

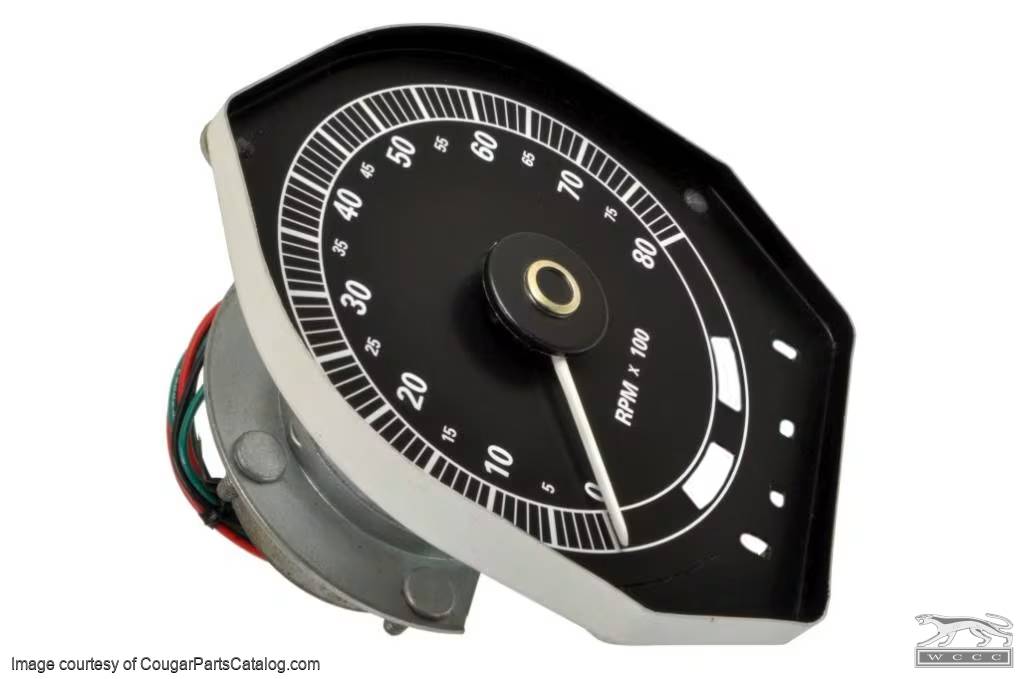

Three wire tachometer for Cougars. Ford wired their early (pre ‘74) tachometers so that they are part of the ignition circuit. What this means is that if the tachometer goes bad, the engine shuts OFF. It also means that you must either replace it with another series type tachometer with 35+ year old circuitry or install a jumper wire to bypass the tach. It also means that you need a special adapter to use your factory tach with an MSD ignition box.
NOTE: 1969 tachs had a white needle, 1970 tachs had an orange needle
Our three wire tachs are independent of the factory wiring. They connect just like a “regular” tachometer - 12+V, Ground & ignition. They replace your factory tachometer in the gauge cluster and depending on what ignition system you are running, connect directly to your MSD tach port (no more pesky and unreliable $40 MSD tach adapter) or to the distributor side of the coil. The 69 and 70 Cougar tachometers will bolt into a 69/70 standard cluster with clock delete plate.
All tachometers come with a 2 year repair/replace warranty.
Core refund will be given when you return your old tachometer, working or not! Please send a copy of your invoice when returning a core.
Check out the video on our new gauge tester:
