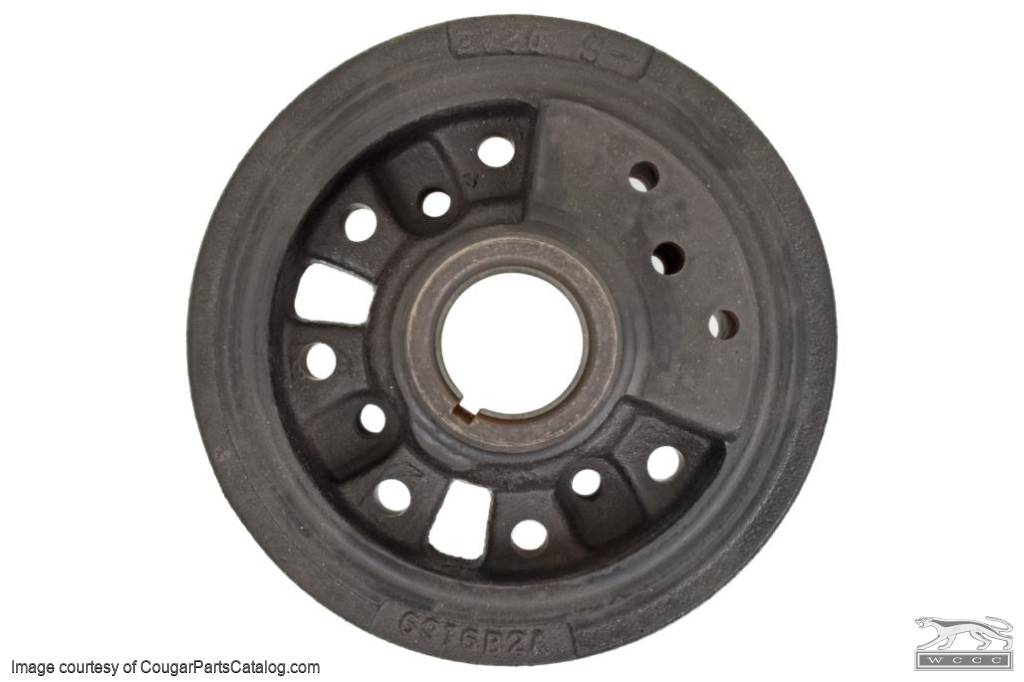

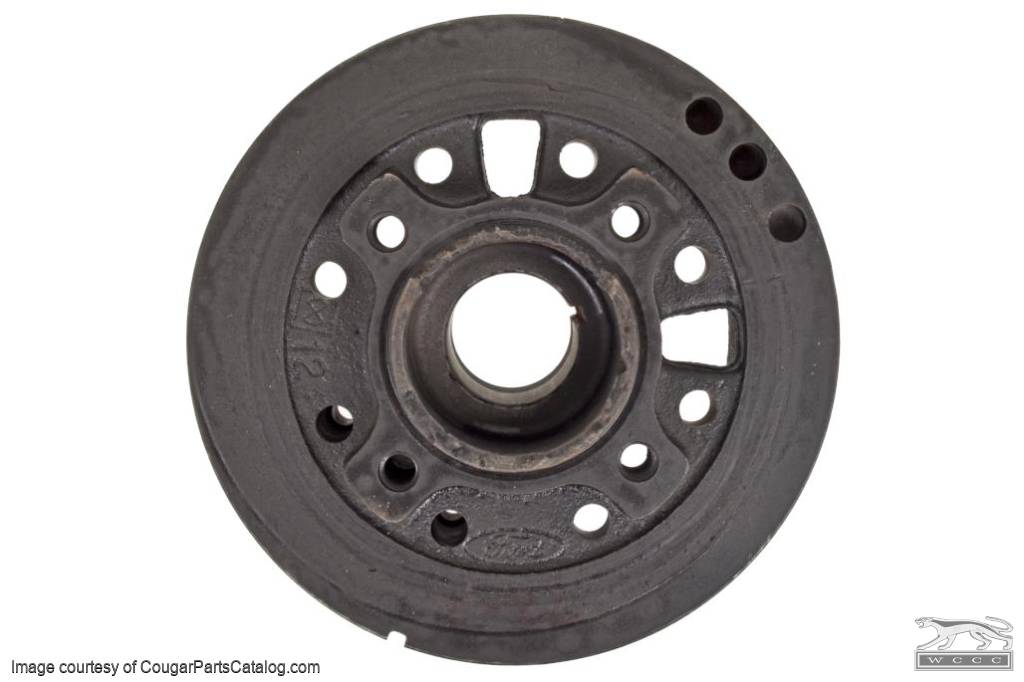

Includes all Ford 1973 H code 351-2V Cleveland engines only. Outside diameter is approximately 6-1/2 inches, and 1-1/4 inches thick. 1972-73 351-2V Cleveland have specific balancers, and are different than 1970-71 351C 2 barrel engines, please identify your engine and verify your balancer numbers. Has the timing marks on rim. Core charge is refundable when rebuildable D2AE-6316-B harmonic balancer is received by WCCC.
Ford part # D2AZ-6316-B, casting number D2AE-6316-B1A.
*NOTE* When ordering double check which 351C engine that you have. It is not uncommon for a 1970-71 version of 351C-2V engines to have been substituted over the last 35 plus years. Not compatible with any of the 351C-4V engines.
Click on images to enlarge.
This is a picture of a 40 year old piece of rubber removed from a harmonic balancer. Notice how dry and cracked it is. The premium black silicone (high temperature) rubber we use is not affected by even continual heat (up to 400 F.) or engine motor oil. The modern material used in our balancers cost about $200 per gallon and will not look like what you see here 40 years later. [You will want to prevent submersion in solvents or gasoline as this type of rubber will absorb solvents.]
The little metal staple you see embedded in the rubber below is for anti static purposes, its job is to ground the inner portion of the part to the outer ring. Over the years the low quality metal used is usually deteriorated beyond usefulness.
Our units have this Beryllium copper spring embedded in them for grounding. This spring boasts 201,000 pounds of tensile strength and will ensure you get no radio static as a result of the balancer.
