  • Clutch - Radiator Fan - Thermal - 428CJ - Heavy Duty - Repro ~ 1969 - 1970 Mercury Cougar / 1969 - 1970 Ford Mustang - 32567
  • Clutch - Radiator Fan - Thermal - 428CJ - Heavy Duty - Repro ~ 1969 - 1970 Mercury Cougar / 1969 - 1970 Ford Mustang - 32567
  • Clutch - Radiator Fan - Thermal - 428CJ - Heavy Duty - Repro ~ 1969 - 1970 Mercury Cougar / 1969 - 1970 Ford Mustang - 32567
  • Clutch - Radiator Fan - Thermal - 428CJ - Heavy Duty - Repro ~ 1969 - 1970 Mercury Cougar / 1969 - 1970 Ford Mustang - 32567
  • Bolts - Fan Clutch to Water Pump - Set of 4 - Repro ~ 1967 - 1970 Mercury Cougar / 1967 - 1970 Ford Mustang - 10476
  • Bolts - Fan Clutch to Water Pump - Set of 4 - Repro ~ 1967 - 1970 Mercury Cougar / 1967 - 1970 Ford Mustang - 10476
  • Bolts - Fan Clutch to Radiator Fan - Set of 4 - Repro ~ 1967 - 1970 Mercury Cougar / 1967 - 1970 Ford Mustang - 10477
  • Bolts - Fan Clutch to Radiator Fan - Set of 4 - Repro ~ 1967 - 1970 Mercury Cougar / 1967 - 1970 Ford Mustang - 10477

Item #: 32567

Login to add this item
to a saved wishlist
Price: $109.56
    Cost: 8765
    Earns: 439
    Bonus: 0

    Item # Description/Size Availability Price Quantity
    In-Stock Item
    Item #: 10476
    10476
    Radiator fan clutch to water pump bolts, set of 4
    Radiator fan clutch to water pump bolts, set of 4
    1
    $5.98
    In-Stock Item
    Item #: 10477
    10477
    Radiator fan clutch to fan bolts, set of 4
    Radiator fan clutch to fan bolts, set of 4
    1
    $3.08

    Availability

    In-Stock Item - Next Business Day

    Applications

    Description

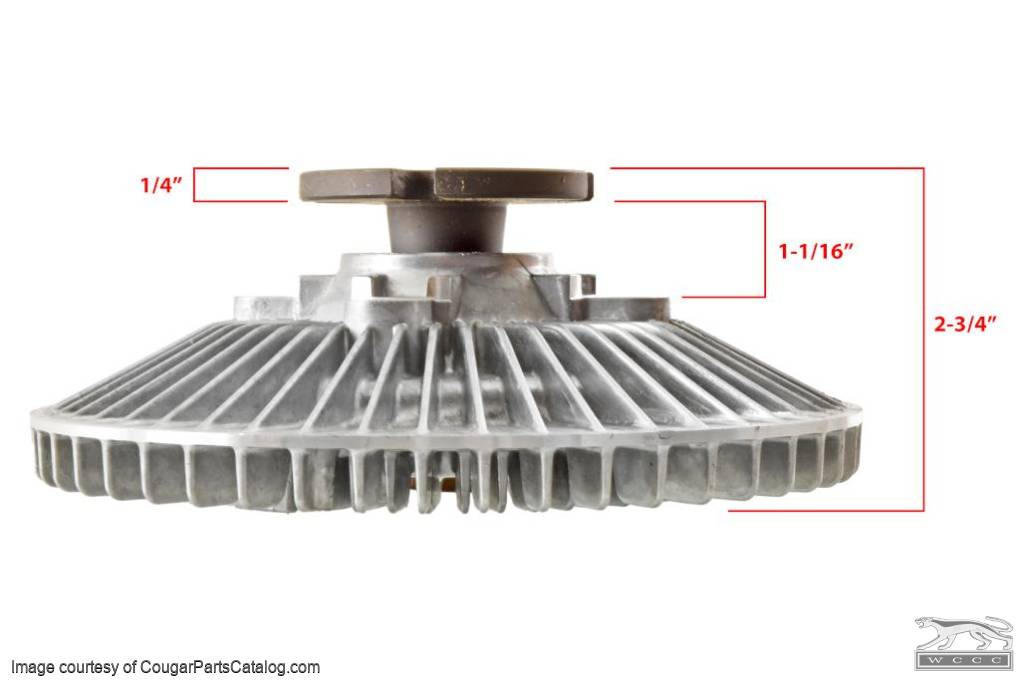

    Heavy Duty reproduction fan clutch that fits the original and reproduction C9ZE-E 7 blade power fan. Hayden fan clutch with an overall height of 2.707 inches. About 5/32" taller than our standard duty fan clutch. Please make sure that you have the clearance behind your radiator.  Similar design as originals, with thermal activated clutch. Overall diameter is 7.25 inches. The C9ZE-E 7 blade clutch fans were installed on 1969-70 Mercury Cougar and Ford Mustangs as well as 1969 Torino, Cyclone, Ranchero with 428CJ engines.

    • 70-90% of the water pump shaft speed.
    • Engaged (high speed) operation provides maximum cooling.
    • Disengaged (low speed) operation provides fuel savings and noise reduction.
    • Greater life expectancy than a non-thermal clutch.
    • Briefly engaged at cold start-up.
    • Engages at about 170° radiator air temperature, (about 30° lower than coolant temperature).

    The air temperature coming through the radiator is sensed by the bi-metal thermal spring on the front of the thermal fan clutch. It expands and contracts with the change in air temperature operating a valve inside of the clutch. When cold, the silicone drive fluid is pumped from the working area to the reservoir. When hot, the valve opens allowing fluid from the reservoir to be transferred to the working area thereby increasing the fan speed. The clutch disengages as the air temperature decreases, closing the valve and allowing the silicone fluid to be pumped back into the reservoir.

    A thermal fan clutch is engaged on a cold startup because the fluid drains into the working area when the engine is shut off. The fan clutch will slow down shortly after startup as a result of a pumping action produced by a difference in speed between the shaft and the body of the clutch.

    How fan clutches work

    Specifications:
    Shipping Weight: 2.00 LBS
    (weight shown may be the dimensional weight)

    This item must ship via

    No Reviews Found, be the first to review this product.
    Number of questions: 1
    Please login to ask a question.
    Question
    Asked:
    What is the measurement of the fan mounting holes center to center? 2 1/4? What is the measurement of the clutch and fan mounting holes to the water pump center bolt hole to center bolt hole? What is the size of the center hole that slides over the water pump snout?
